6.86 inch Bar screen 480x1280 resolution RGB interface car smart home appliance kitchen appliance LCD display screen

Producten

6.86 inch Bar screen 480x1280 resolution RGB interface car smart home appliance kitchen appliance LCD display screen

MOQ:	1
Prijs:	Onderhandelbaar
Leveringstermijn:	7-16 dagen
Betalingswijze:	L/C, D/A, D/P, T/T
Toeleveringskapaciteit:	10000 STUKS

Detailinformatie

Productbeschrijving

Detailinformatie

Plaats van herkomst

SHENZHEN

Merknaam

TXWEI

Certificering

CE FCC ROHS

Modelnummer

TXW686013B0

Document

Aantal pixels:

480*1280

Kijkrichting:

Display interface:

Helderheid:

500 nits

Actief gebied:

60,19*160,51

Omtrekgrootte:

66,7*181,2*4,4mm

Bedrijfstemperatuur:

-20+70 ℃

Opslagtemperatuur:

-30+80°C

Aantal pinnen:

40PIN

Display IC:

NV3052C

Markeren:

6.86 inch RGB LCD display

480x1280 resolution TFT screen

car smart home LCD display

Productbeschrijving

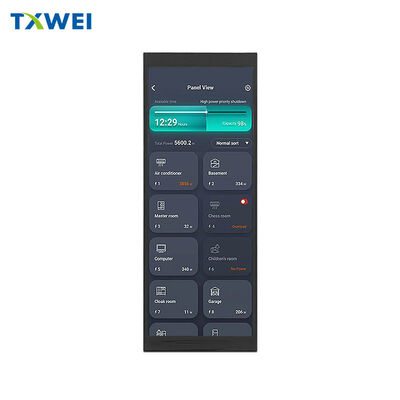

6.86" Vertical Bar-Type RGB Display | TXW686013B0

Cost-Effective Long-Strip Display for Smart Appliances and Energy Storage Systems

Not every application demands cutting-edge MIPI interfaces or sunlight-blasting brightness. Sometimes, you need a reliable, cost-optimized display that speaks the language of your existing microcontroller architecture while delivering modern UI capabilities. The TXW686013B0 fills this gap perfectly—a 6.86-inch vertical bar-type display featuring traditional RGB parallel interface compatibility, making it the ideal upgrade path for white goods, energy storage systems, and medical equipment where development simplicity and BOM cost control take priority over high-end specifications.

With a crisp 480×1280 resolution stretched across a tall 60.19mm by 160.51mm active area, this IPS panel brings smartphone-like interface aesthetics to appliances without forcing you to redesign your entire embedded system around complex high-speed serial interfaces.

The RGB Advantage: Development Simplicity Meets Modern Design

Legacy-Friendly 40-Pin RGB Interface

While the industry rushes toward MIPI DSI interfaces that require dedicated controllers and high-speed PCB layout expertise, the TXW686013B0 maintains the proven RGB 40-pin parallel interface that generations of embedded engineers know intimately. This isn't a limitation—it's a strategic advantage for specific applications.

The RGB interface connects directly to mainstream microcontrollers from STM32, NXP LPC, and Allwinner series chips without requiring expensive MIPI bridge ICs or dealing with impedance-matched differential pairs. Your existing firmware libraries for 8080 or RGB parallel protocols work immediately, slashing development time from months to weeks. For cost-sensitive appliances where every penny of BOM cost matters, eliminating the MIPI controller chip saves both component cost and PCB layer complexity.

The 40-pin connector provides dedicated R, G, B data lines plus horizontal and vertical sync signals, delivering uncompressed 24-bit color to the NV3052C driver IC without the protocol overhead of serialized interfaces.

6.86-Inch Vertical Canvas for Appliance UIs

The 480×1280 resolution creates a 3:8 aspect ratio that mirrors the natural vertical scrolling behavior of modern smartphone interfaces. At 60.19 millimeters wide and 160.51 millimeters tall, the active display area provides substantial vertical real estate for intuitive parameter adjustment interfaces.

Imagine a smart range hood where a finger slides along a 160-millimeter temperature gradient, or an energy storage inverter displaying a full day's power generation curve without horizontal scrolling. The 66.7mm by 181.2mm module outline (just 4.4mm thick) fits comfortably into the narrow control panel spaces typical of refrigerator doors, oven fronts, and washing machine consoles.

The IPS technology ensures that whether the user stands at 175 centimeters tall or a child reaches up from below, the display maintains consistent color and contrast—critical for safety warnings and status indicators on energy equipment.

Application-Specific Benefits

Energy Storage and Inverter Systems

For residential battery storage systems and solar inverters, the TXW686013B0 provides the perfect balance of information density and readability. The 500-nit brightness suits indoor installation environments—garages, utility rooms, and exterior walls in shaded areas—where extreme sunlight readability isn't required but clear visibility under fluorescent lighting is essential.

The vertical format naturally accommodates battery charge level indicators that read like a traditional fuel gauge, extending from bottom to top across the full 160.51mm height. Real-time power flow animations (showing energy moving from solar panels to batteries to home consumption) flow intuitively in a vertical column, while the RGB interface ensures smooth animation updates without the bandwidth constraints that can plague SPI-connected displays.

Operating temperatures of -20°C to +70°C cover the thermal realities of garage installations in cold climates and equipment rooms that lack air conditioning, while the storage rating of -30°C to +80°C protects inventory during winter logistics and summer warehouse storage.

Smart Kitchen Appliances

Modern range hoods, ovens, and refrigerators demand touch-enabled interfaces but face harsh environments of steam, grease, and temperature cycling. While this display module ships as a pure display (touch optional/customizable), the 4.4mm thickness leaves ample room for external capacitive touch films or resistive touch overlays that appliance manufacturers prefer for their durability and cost structure.

The 500-nit luminance cuts through kitchen ambient lighting and steam without the power consumption and thermal management challenges of 1000+ nit displays. The NV3052C driver IC includes gamma correction optimized for white backgrounds common in appliance UIs, ensuring that recipe text and control menus appear crisp against light-colored glass panels.

For washing machines, the vertical orientation allows cycle selection interfaces that mimic the physical dial layouts users are familiar with, while adding digital precision and WiFi connectivity status indicators that wouldn't fit on traditional mechanical controls.

Medical and Healthcare Equipment

Portable medical devices and bedside monitors benefit from the display's modest power requirements and reliable industrial temperature ratings. The RGB interface simplifies integration with legacy medical device processors that prioritize real-time reliability over high-speed video streaming, while the 6.86-inch diagonal provides sufficient character height for vital signs readability from across a room.

The -20°C to +70°C operational range accommodates the temperature variations of mobile medical carts moving between climate-controlled patient rooms and sterilization areas, while the slim 4.4mm profile allows ergonomic handheld designs for portable diagnostic tools.

Technical Specifications Overview

Model Designation: TXW686013B0
Display Diagonal: 6.86 inches (174.4mm)
Resolution: 480 pixels horizontal by 1280 pixels vertical
Aspect Ratio: 3:8 vertical orientation
Display Technology: IPS full-viewing-angle TFT
Interface Type: RGB parallel interface, 40-pin connector
Driver IC: NV3052C (integrated timing controller and gamma correction)
Brightness Output: 500 nits (cd/m²), suitable for indoor and shaded outdoor environments

Active Display Area:
Width: 60.19 millimeters
Height: 160.51 millimeters

Module Outline Dimensions:
Width: 66.7 millimeters
Height: 181.2 millimeters
Depth: 4.4 millimeters (single display module)

Environmental Ratings:
Operating Temperature Range: -20 degrees Celsius to +70 degrees Celsius
Storage Temperature Range: -30 degrees Celsius to +80 degrees Celsius

Integration and Customization Support

Electrical Interface Details

The 40-pin RGB interface accepts standard 24-bit color data (8 bits per RGB channel) with dedicated pixel clock, horizontal sync, and vertical sync lines. This parallel architecture allows direct connection to microcontroller external memory interfaces (FSMC on STM32, EBI on SAM series) without protocol translation chips, reducing both component count and potential failure points.

The NV3052C driver includes programmable gamma curves to optimize display appearance for different cover glass thicknesses and optical bonding configurations—a critical feature when integrating behind the tinted or anti-glare glass common in premium appliances.

Mechanical Integration Notes

At 66.7mm wide and 181.2mm tall, the module requires minimal bezel area—approximately 3.25mm on each side—allowing modern narrow-frame appliance designs. The 4.4mm thickness accommodates standard LED backlight units while maintaining slim aesthetics suitable for flush-mount control panels.

For applications requiring touch functionality, the display surface is compatible with both capacitive touch film lamination (for multi-touch) and resistive touch layers (for stylus or glove operation), with the flat glass surface ensuring optimal optical bonding when paired with protective cover lenses.

Customization Options

While the standard configuration offers 500-nit brightness optimized for indoor efficiency, backlight modifications can adjust output to 300 nits for dark-room medical applications or 700 nits for semi-outdoor visibility. FPC (Flexible Printed Circuit) cable lengths and connector orientations can be customized to match your specific chassis routing requirements without the long lead times associated with full LCD glass customization.

Ideal For Developers Who Value Simplicity

If your engineering team needs to deliver a modern UI to a cost-sensitive appliance without learning MIPI protocol stacks, redesigning PCBs for high-speed signal integrity, or integrating expensive bridge chips, the TXW686013B0 offers the pragmatic solution. It bridges the gap between old-school RGB microcontroller projects and modern vertical touchscreen interfaces, letting you upgrade your product's visual appeal while keeping your proven embedded architecture intact.

Ready to modernize your appliance interface without reinventing your electronics?

Request technical documentation and sample units today. Our applications team can provide reference schematics for RGB interface connections to popular MCU platforms including STM32F4/F7 series, NXP i.MX RT series, and Allwinner D1/A133 controllers.
